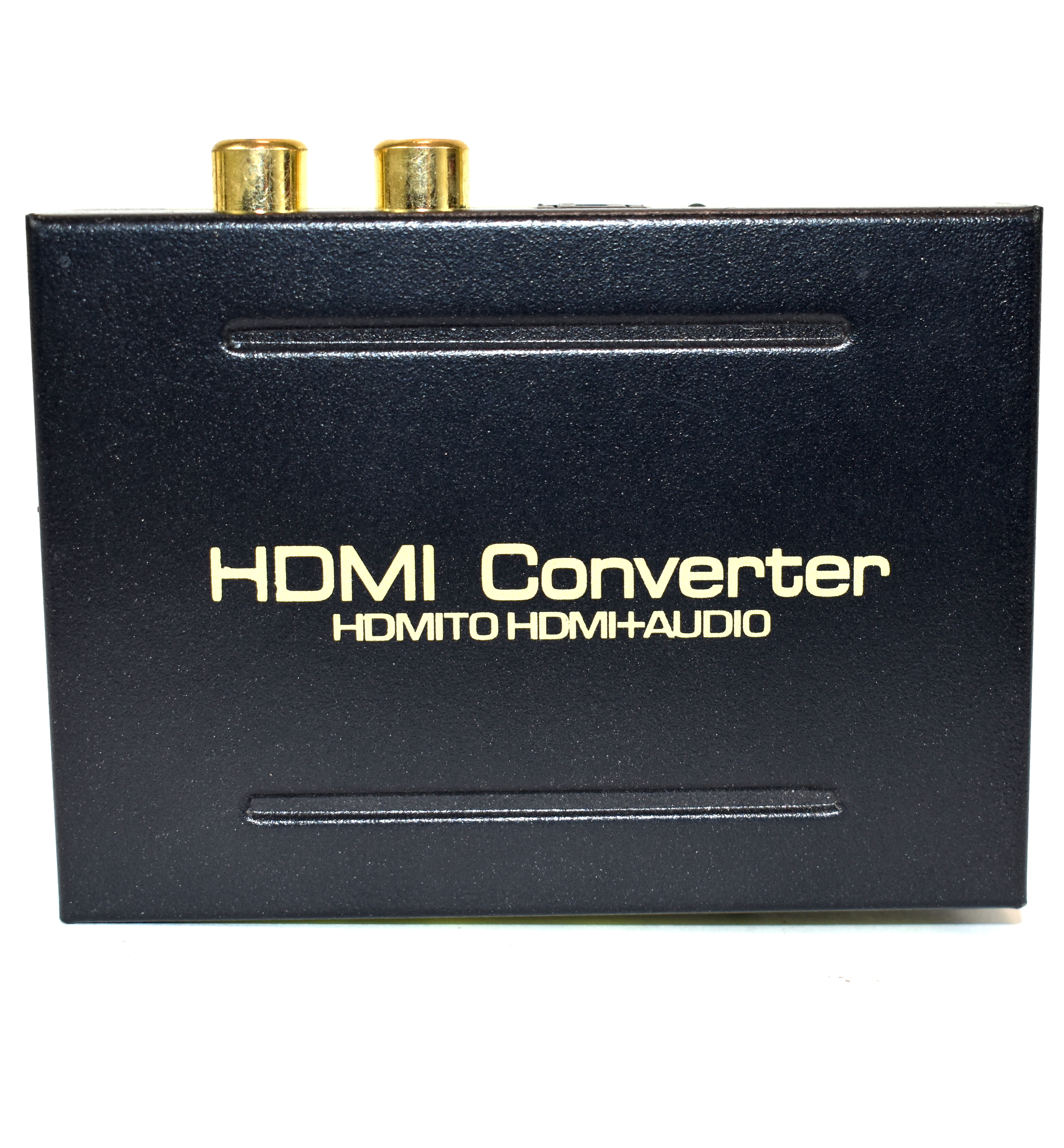

HDMI to RCA-Audio and HDMI - SPDIF Converter

HDMI Converter

Convers HDMI signal to RCA right and left, HDMI, and SPDIF output

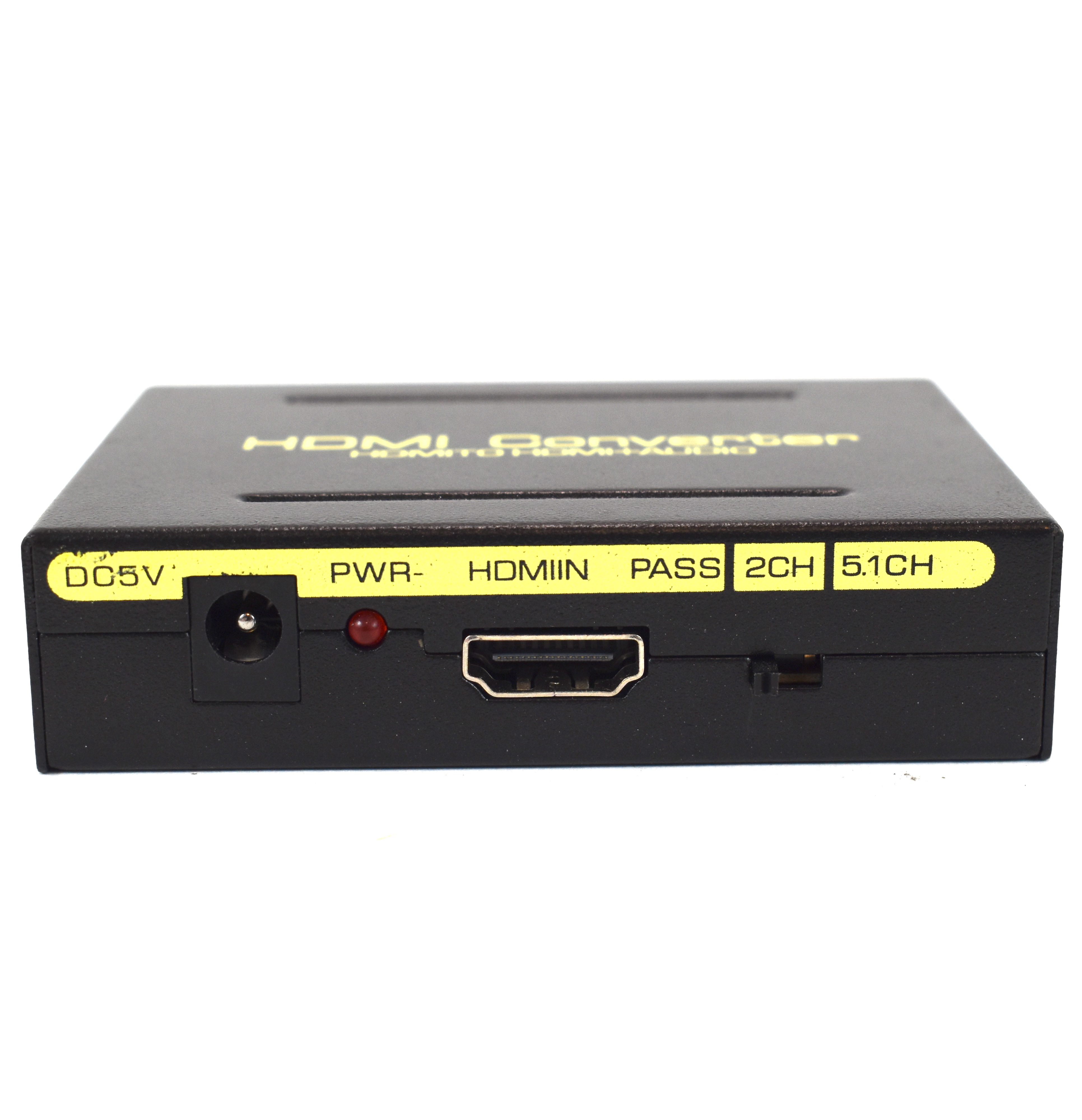

1. To use one HDMI cable to connect the HD Source with the input HDMI port.

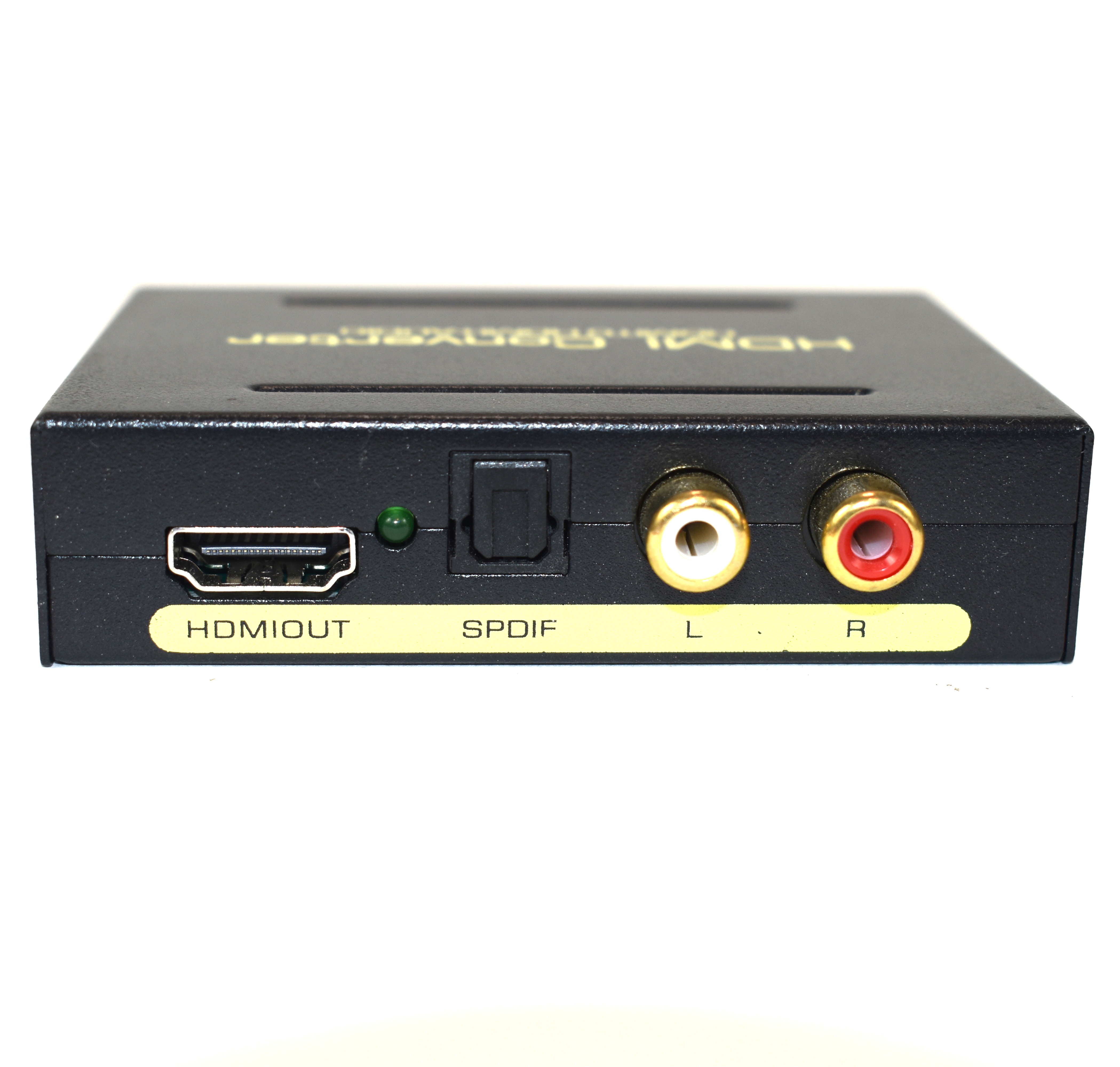

2. To connect the converter HDMI output port with the HD Display.
3. To use one audio cable to connect the converter R/L port with the audio equipment.
4. To use the optical cable to connet the SPDIF port with the audio equipment.
5. To connect the converter with 5V DC power adaptor.

SPECS:
HDMI resolution. 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format 24bit deep color 30bit,36bit
Audio output LVR+SPDIF
Max bandwidth 225MHz
Max baud rate 6.75Gbps
Input/Output TMDS signal 0.5-1 5Volts p-p(TTL)
Input/Output DDC signal 5Volts p-p(TTL)
Input cable distance SI5m AWG26 HDMI standard cable
Output cable distance S20m AWG26 HDMI standard cable
Max working current 500mA
Power adapter format lnput:AC(50/60Hz)100V-240V;Output: DC5V/1A
Operating Temperature range (-15to +55°C)
Operating Humidity range 510 go% rh(No Condensation)
Dimension(LXWXH) 84.5x61.8x21(mm)
Weight 135g

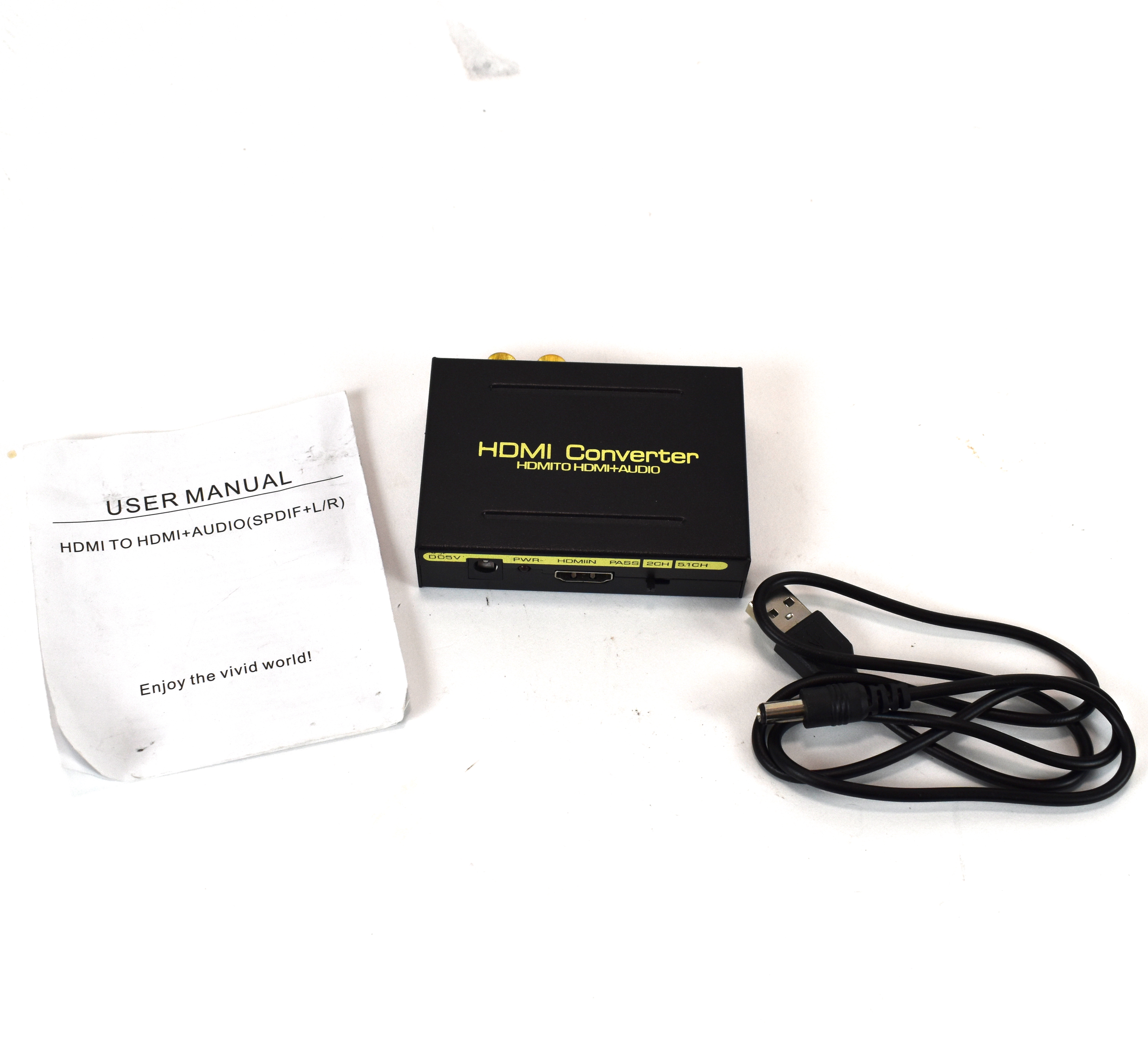

Includes USB power cable and instructions
